JTAG-Booster for AMD élanSC520

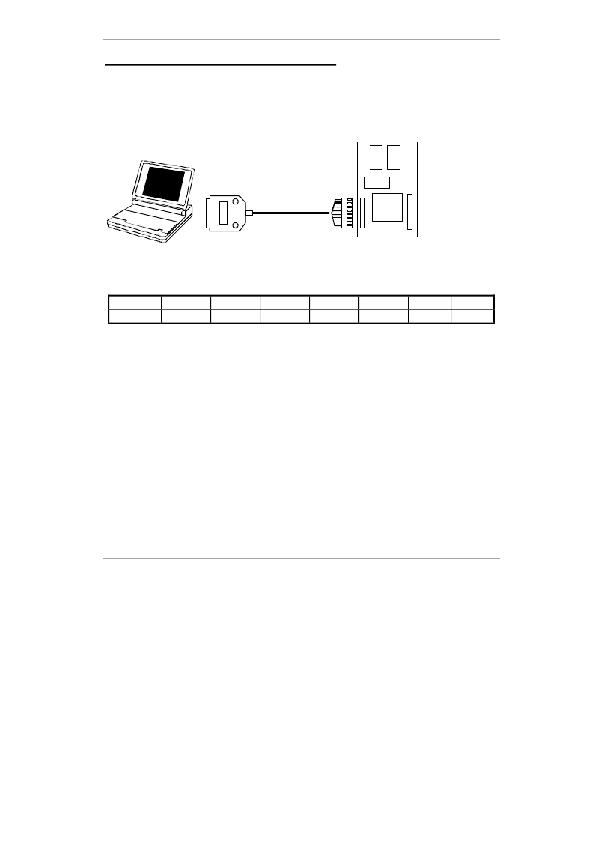

1.2.Connecting your PC to the target system
The JTAG-Booster can be plugged into standard parallel ports (LPT1-3) with a
DB25-Connector.
LPT1-3
1
1
élan
SC400
Module élan486
The target end of the cable has the following reference:
1
TCK
2*
GND
3
TMS
4
TRST#
5
NC
6
TDI
7
TDO
8
+3.3V
*PIN 2 can be detected by the white thick cable.
To connect your design to the JTAG-BOOSTER you need a single row berg
connector with a spacing of 2.54mm on your PCB. The names refer to the target:
Pin 7 is the target’s TDO pin and is connected to the JTAG-Booster’s TDI pin.
A 3.3V version of the JTAG-Booster is delivered for the AMD ElanSC520.
Do not connect the 3.3V JTAG-Booster to a 5V power supply. The JTAG-
Booster may be damaged.
Before you start the program, the JTAG-BOOSTER must be plugged to a parallel
interface of your PC and to the 8 pin JTAG connector on the target.
JTAGEL5d.doc
5
